• Vista asteria double glazed asteria system couples
  • exemplary ACOUSTIC PERFORMANCE
  • with REFINED DESIGN.
  • Vista asteria achieves an
  • acoustic rating of up to 50dB
  • for a TRANQUIL ENVIRONMENT.
  • Vista asteria offers an ELEGANT
  • frameless configuration,
  • ENHANCING natural light.
  • DURABLE BUILD and EASE OF MAINTENANCE
  • enables Vista asteria to withstand the rigor of
  • commercial and public spaces.
  • Its all about the DETAILS

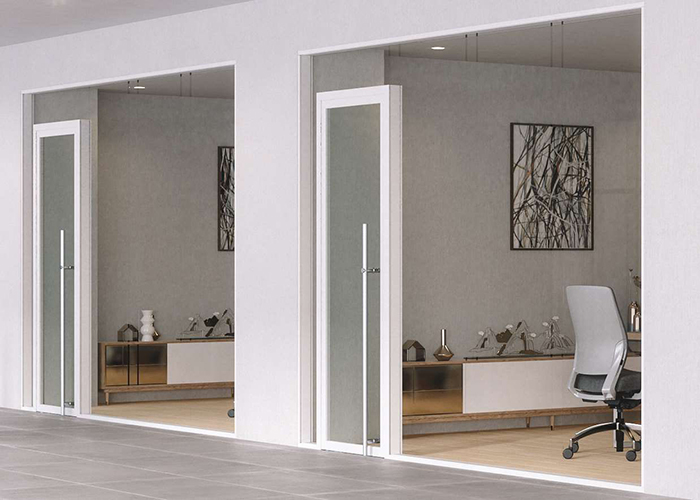

Vista asteria can asteria be supplied with floating door frame for enhanced esthetics.

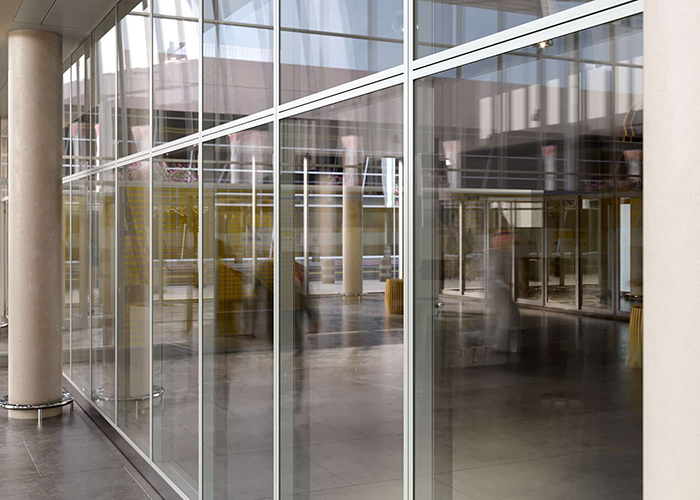

Vista asteria framed option can reach heights up to 6 meters suitable for commercial areas.

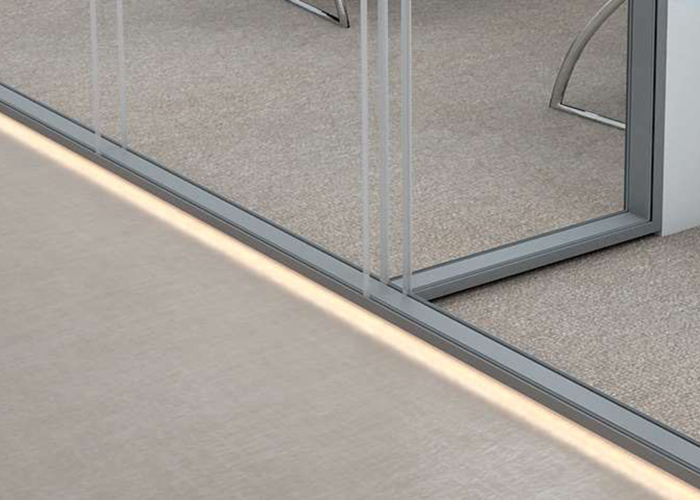

Vista asteria bottom channel with cove light option adds rich ambiance to the office environment.

Specifications

Material

  • Aluminium Grade 6063 T6 confirming
    to BS 1474:1987

Profile size

  • Partition - 100x28mm
  • Door Frame - 100x57mm

Profile finish

  • Powder coated
  • Anodized

Glass type

  • CFT
  • Low Iron
  • Tinted

Glass thickness

  • 2x12mm.
  • 1x12 + 1x12.8 or 13.52mm laminated
  • 2x12.8 or 13.52mm laminated

Glass joints

  • 180⁰ / 90⁰ / 135⁰ / 3 way polycarbonate
  • joints for 12mm glass
  • Joint tape for laminated glass

Acoustic performance

  • 12+12mm achieving 43 Rw dB
  • 12+12.8mm achieving 48 Rw dB
  • 12.8+12.8mm achieving 50 Rw dB

Maximum height for installation

  • 3000mm from finished floor to finished ceiling level

Higher installation can be achieved if installed as a framed system

Solid panels

  • 1200x2400x12mm laminated boards. *
  • 2070x2800x18mm laminated boards *

* Other sizes and finishes are available upon request.
