• Vista solo single glazed system
  • is an ACCESSIBLE and CONTEMPORARY solution
  • for professional environments.
  • Vista solo features a NON-OBTRUSIVE
  • aluminum profile for a
  • MODERN and REFINED space.
  • Easy installation and MODEST
  • DESIGN ensures that solo
  • EXCEEDS EXPECTATIONS
  • Vista solo system provides
  • VARIOUS installation OPTIONS
  • for door shutters

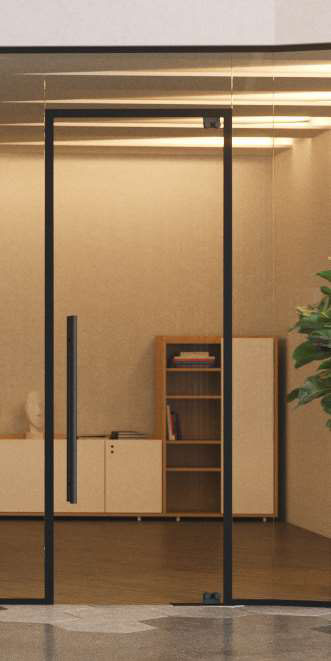

Full height door frames with frameless or framed door shutters.

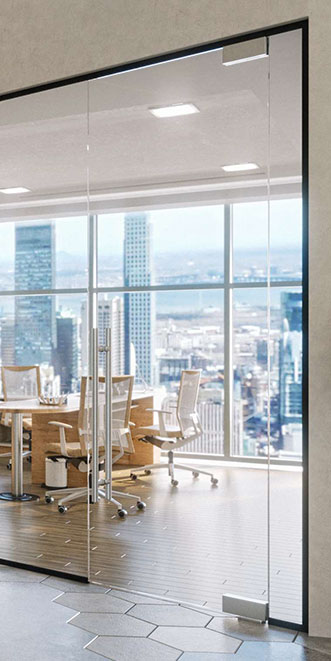

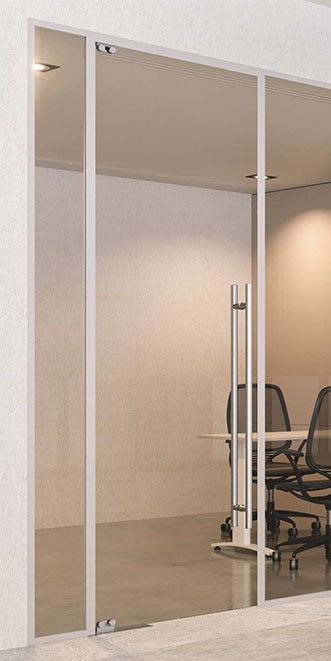

Full height frameless door installation with floor spring or hydraulic patch fittings.

Floating door frame with frameless or framed door shutters.

Specifications

Material

  • Aluminium Grade 6063 T6 confirming
    to BS 1474:1987

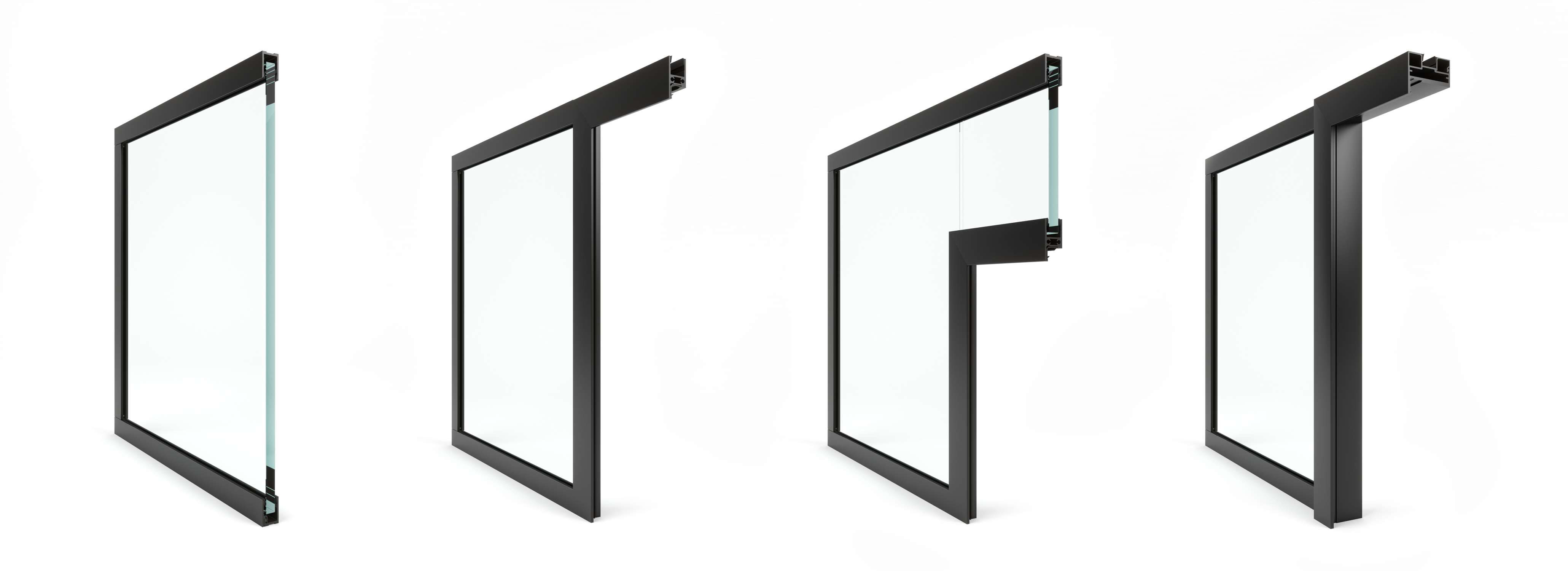

Profile size

  • Partition - 21x28mm
  • Door Frame - 42x21mm
  • Door Frame - 40x51mm

Profile finish

  • Powder coated
  • Anodized

Glass type

  • CFT
  • Low Iron
  • Tinted

Glass thickness

  • 12mm.
  • 12.8 or 13.52mm laminated

Glass joints

  • 180⁰ / 90⁰ / 135⁰ / 3 way polycarbonate
  • joints for 12mm glass
  • Joint tape for laminated glass

Acoustic performance

  • 12mm achieving 34 RwdB
  • 12.8mm achieving 38 RwdB

Maximum height for installation

  • 3000mm from finished floor to finished ceiling level
