• An UNCOMPROMISED solution
  • for a PROFESSIONAL environment.
  • Vista cristal system is
  • the PINNACLE in its range.
  • Vista cristal system offers BANDED
  • CONFIGURATIONS with MECHANICAL fixation,
  • a UNIQUE feature in the trade that reflects
  • the quality of the system.
  • Either with COMMONLY laid-out transoms
  • or UNCONVENTIONAL fixing designs,
  • cristal system suits various aesthetic needs.

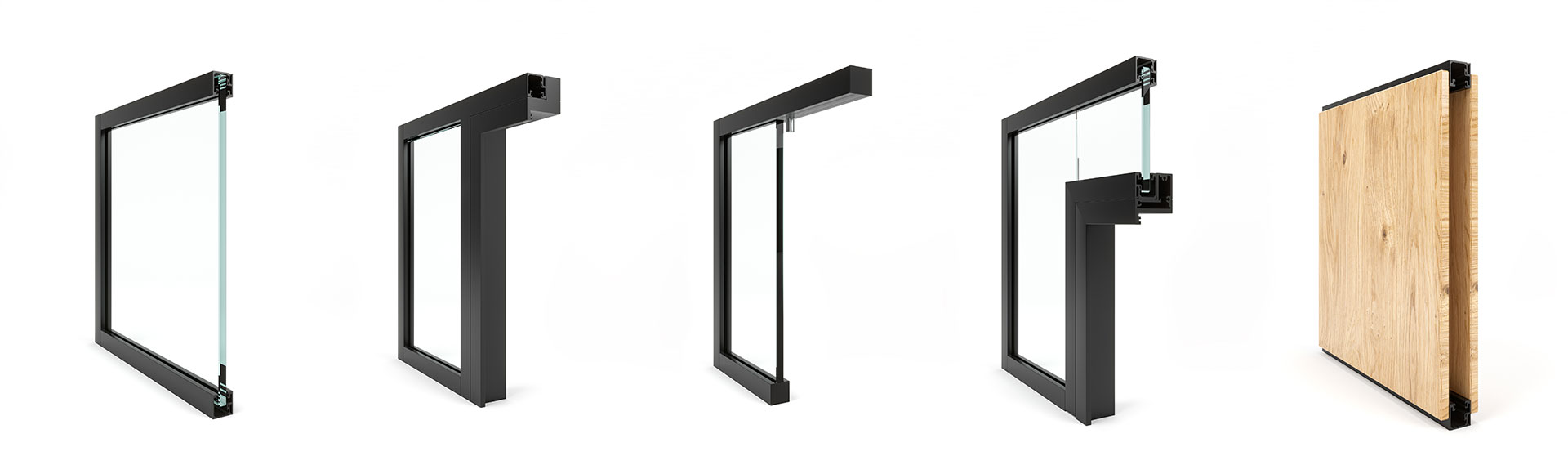

  • Mechanically fixed 30mm trims,
  • an INDUSTRY REVOLUTION, allows designers
  • to reach LIMITS that were UNATTAINABLE
  • prior to the Vista cristal era.
  • Its all about the DETAILS

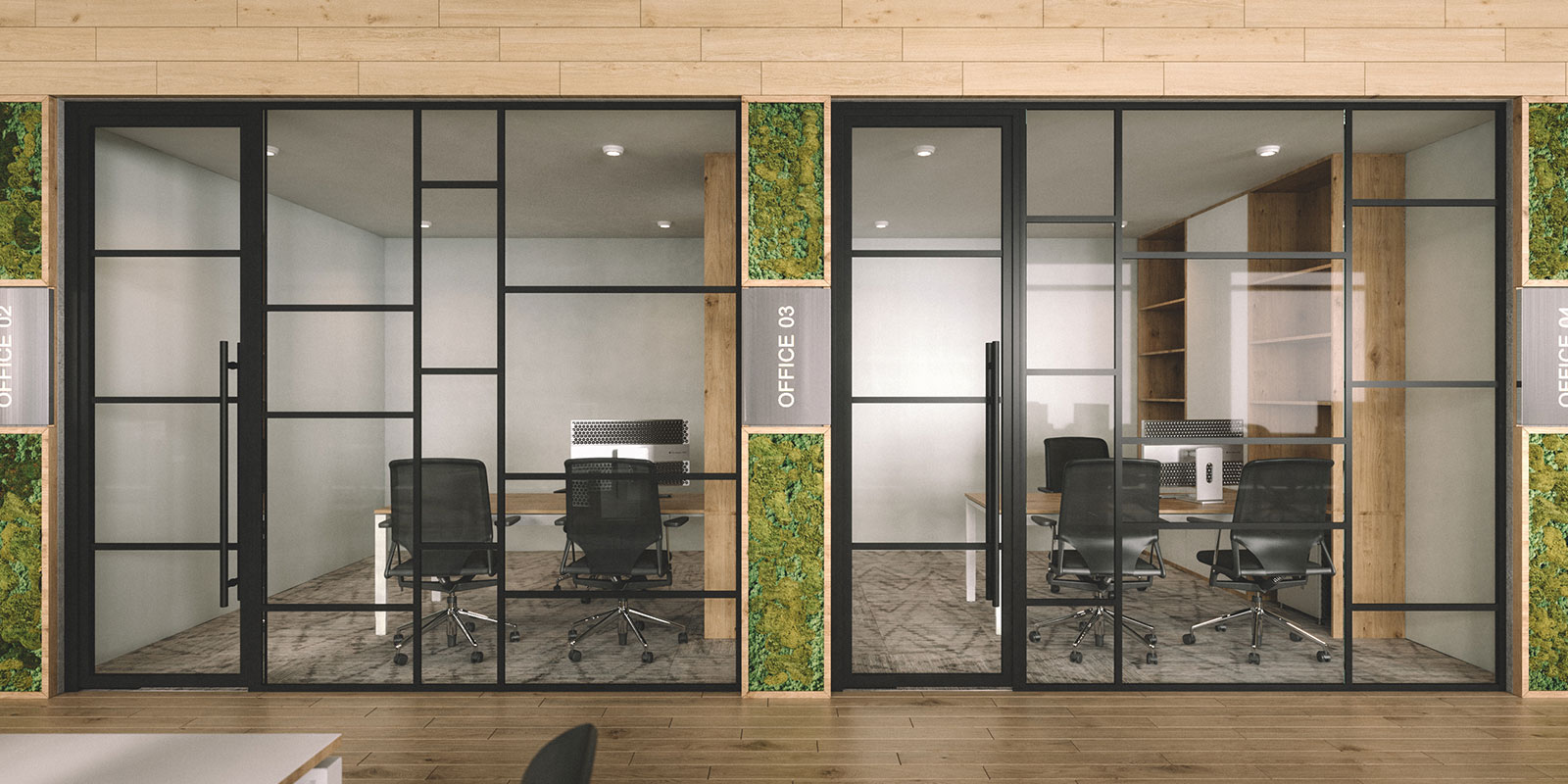

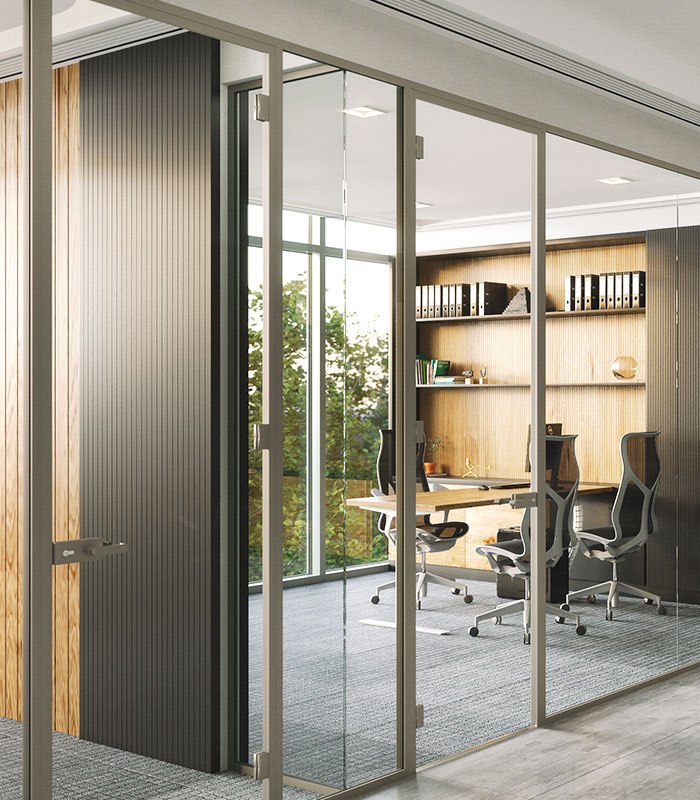

Vista cristal system door installation using set of 3 hinges, lever handle and lock mounted on door frame is among several door options.

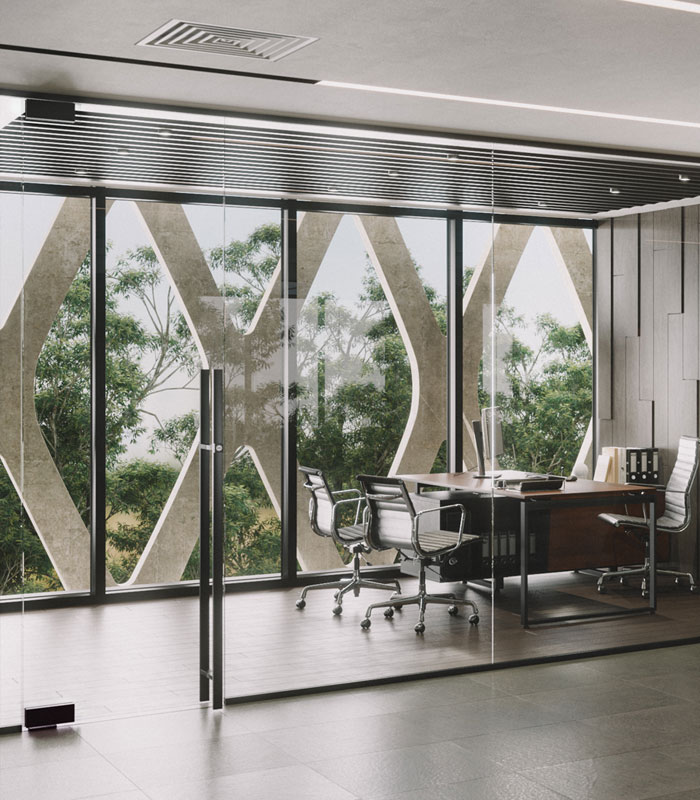

Vista cristal frameless door installation with hydraulic patch fittings allows for continuous glass elevation without intrusions.

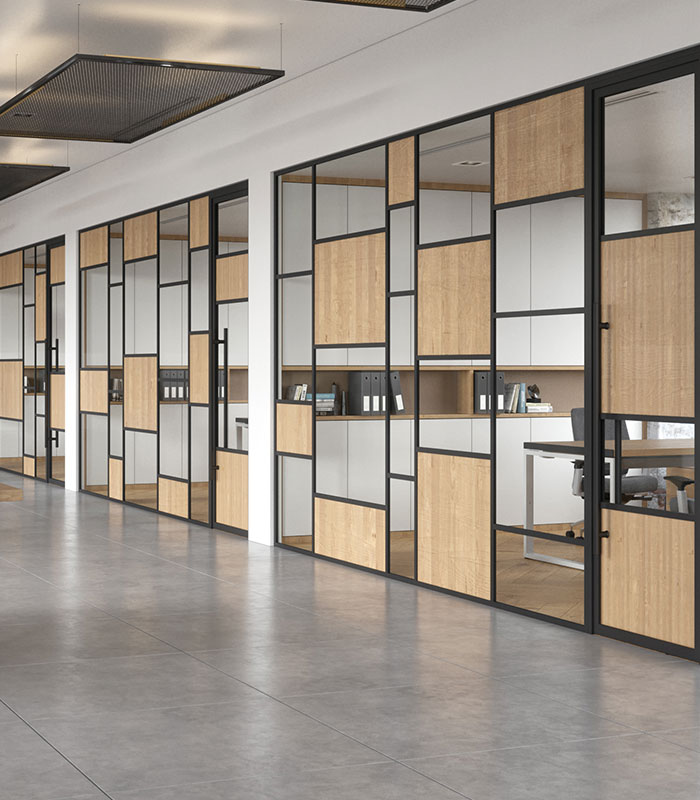

Vista cristal random banded installation with wooden effect panels acting as privacy shields besides being a design element.

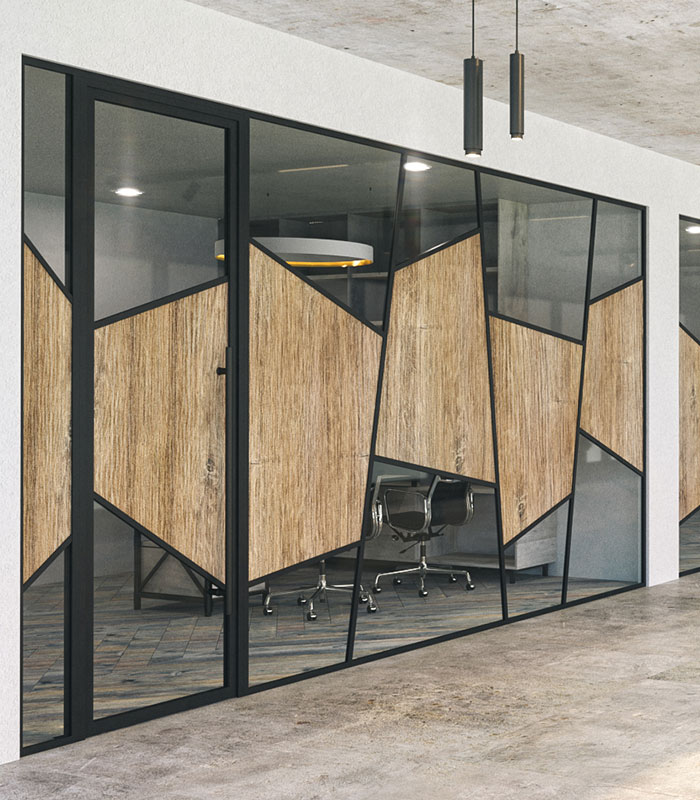

Vista cristal diagonal banded system with wooden effect panels integrated with the overall theme.

Specifications

Material

  • Aluminium Grade 6063 T6 confirming to BS 1474:1987

Profile size

  • Partition - 30x30mm
  • Door Frame - 54x54mm

Profile finish

  • Powder coated
  • Anodized

Glass type

  • CFT
  • Low Iron
  • Tinted

Glass thickness

  • 12mm.
  • 12.8 or 13.52mm laminated
  • 15.52 or 17.52mm laminated

Glass joints

  • 180⁰ / 90⁰ / 135⁰ / 3 way polycarbonate
  • joints for 12mm glass
  • Joint tape for laminated glass

Acoustic performance

  • 12mm achieving 34 RwdB
  • 12.8mm achieving 38RwdB
  • 17.52mm achieving 41RwdB

Maximum height for installation

  • 3000mm from finished floor to finished
  • ceiling level using 12mm or 13.52mm glass
  • 5000mm from finished floor to finished
  • ceiling level using 17.52mm glass

Solid panels

  • 1200x2400x12mm laminated boards *
  • 2070x2800x18mm laminated boards *

* Other sizes and finishes are available upon request
