• Formulating a balance between
  • AESTHETICS & FUNCTIONALITY

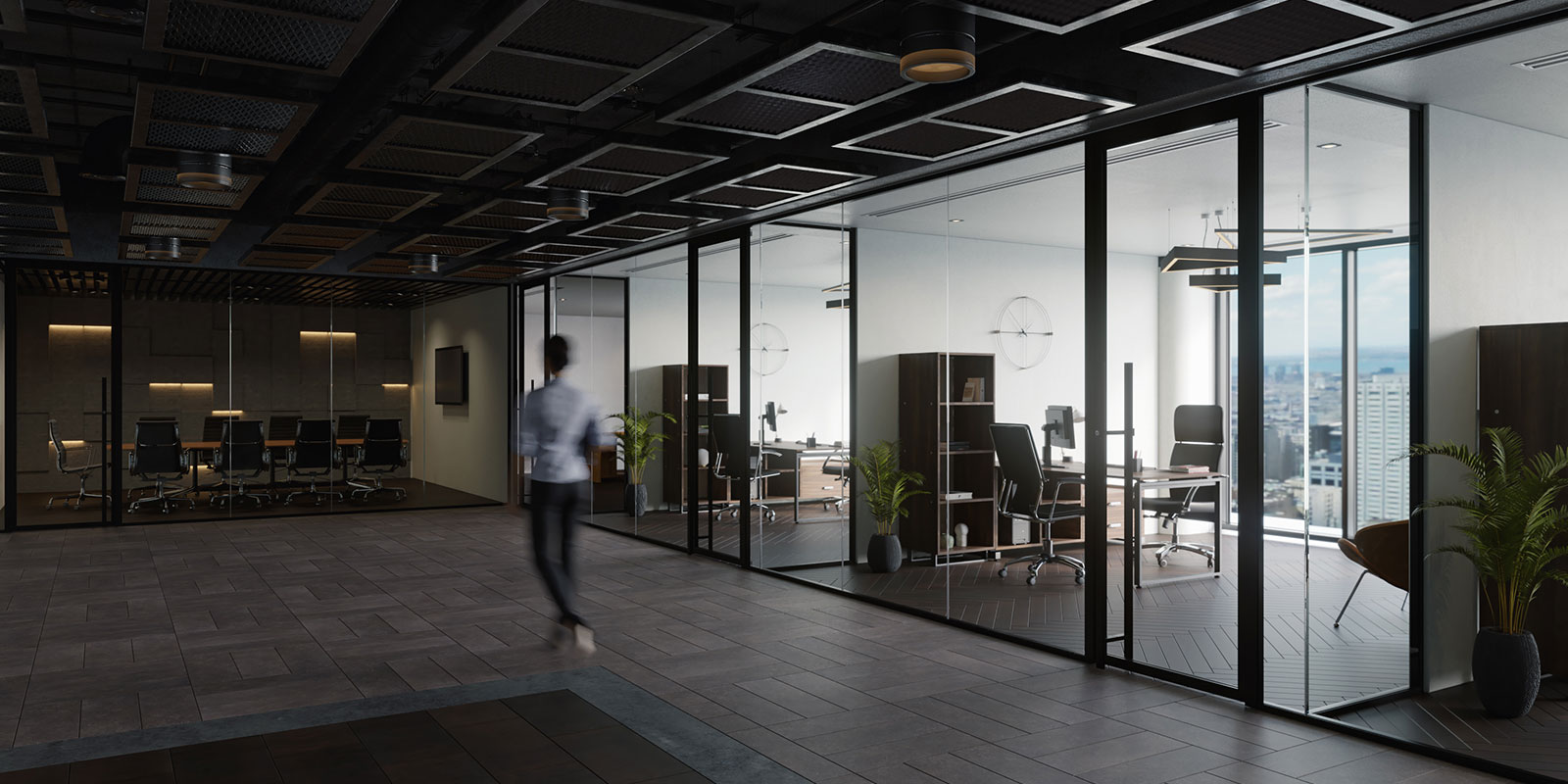

  • Vista Neo Double Glazed System is capable of
  • fulfilling the needs of any office environment.
  • Embodying functionality whilst ensuring an alluring
  • INDUSTRIAL APPEAL

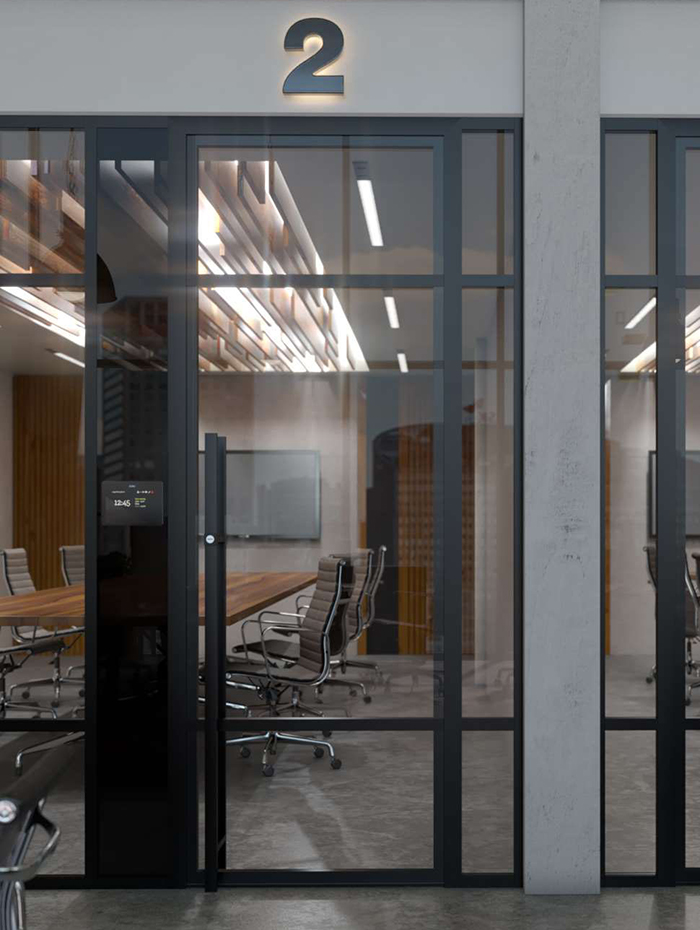

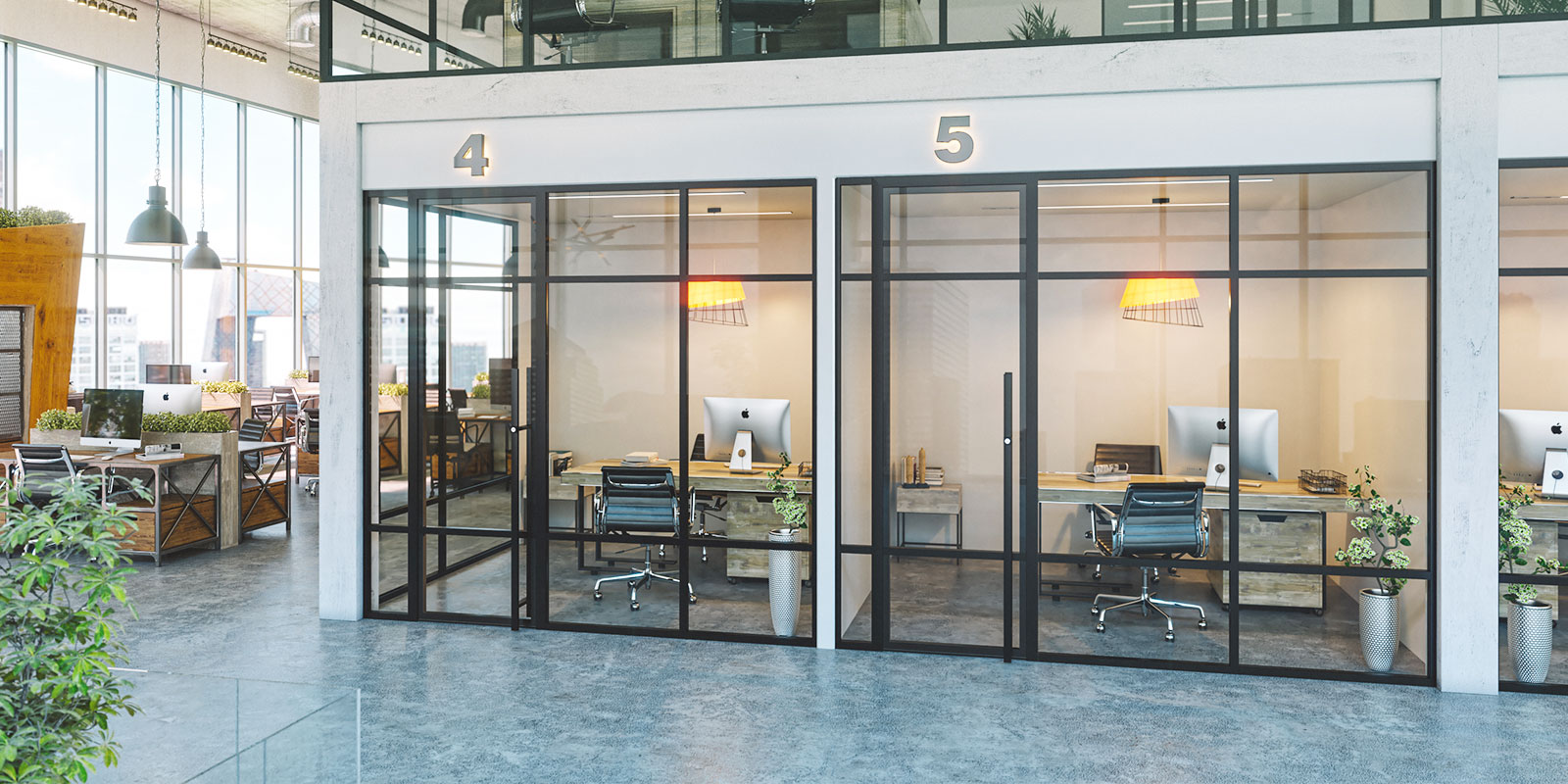

  • Vista Neo BANDED System features intersecting
  • aluminum profiles which act to develop a grid along
  • the surface of the partition

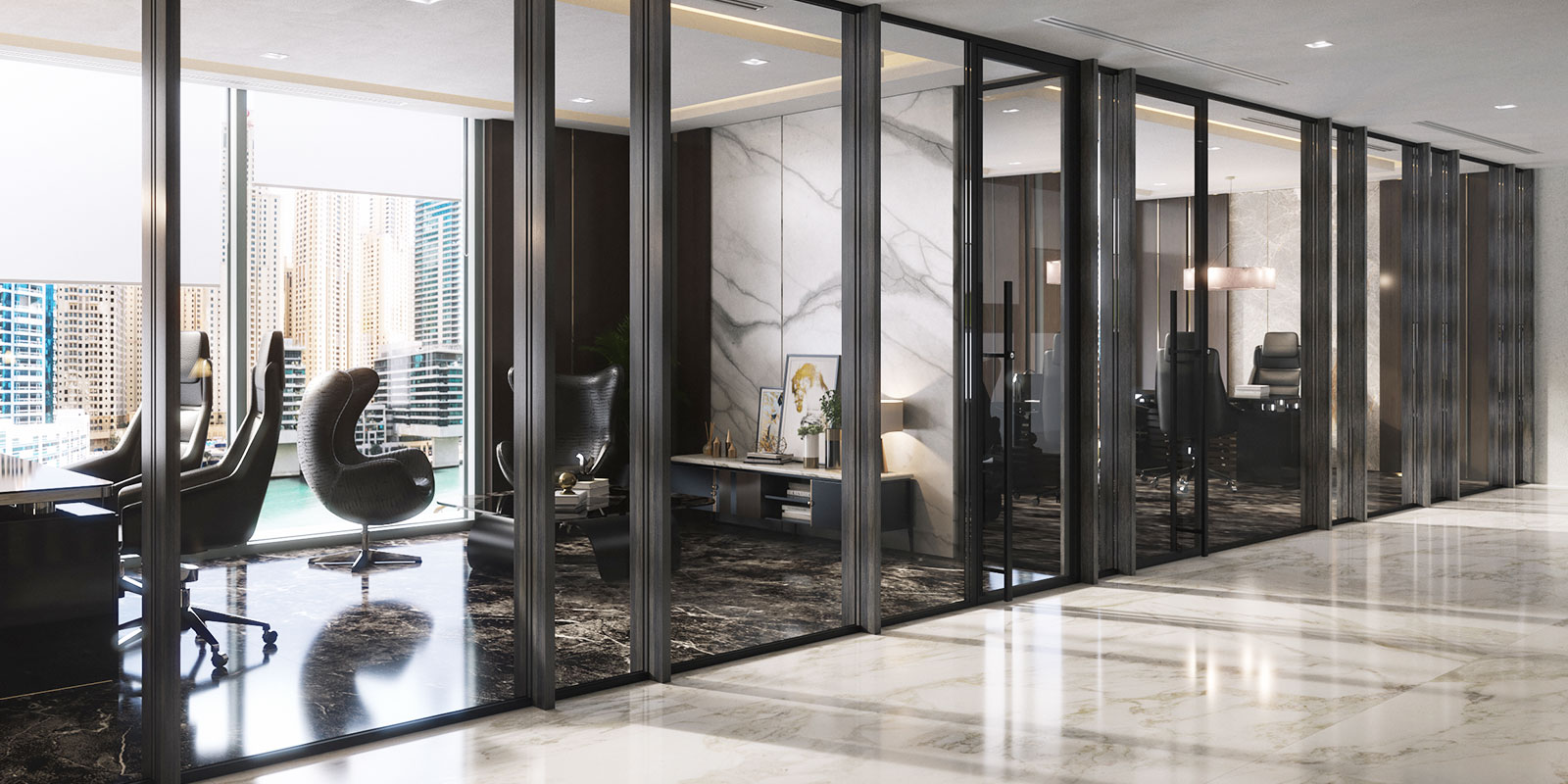

  • Vista Neo double glazed system paired with
  • 54mm floor and ceiling aluminum profiles, conjoin to
  • formulate excellent ACOUSTIC PERFORMANCE
  • as well as provide INCREASED LEVELS OF DESIGN.
  • Its all about the DETAILS

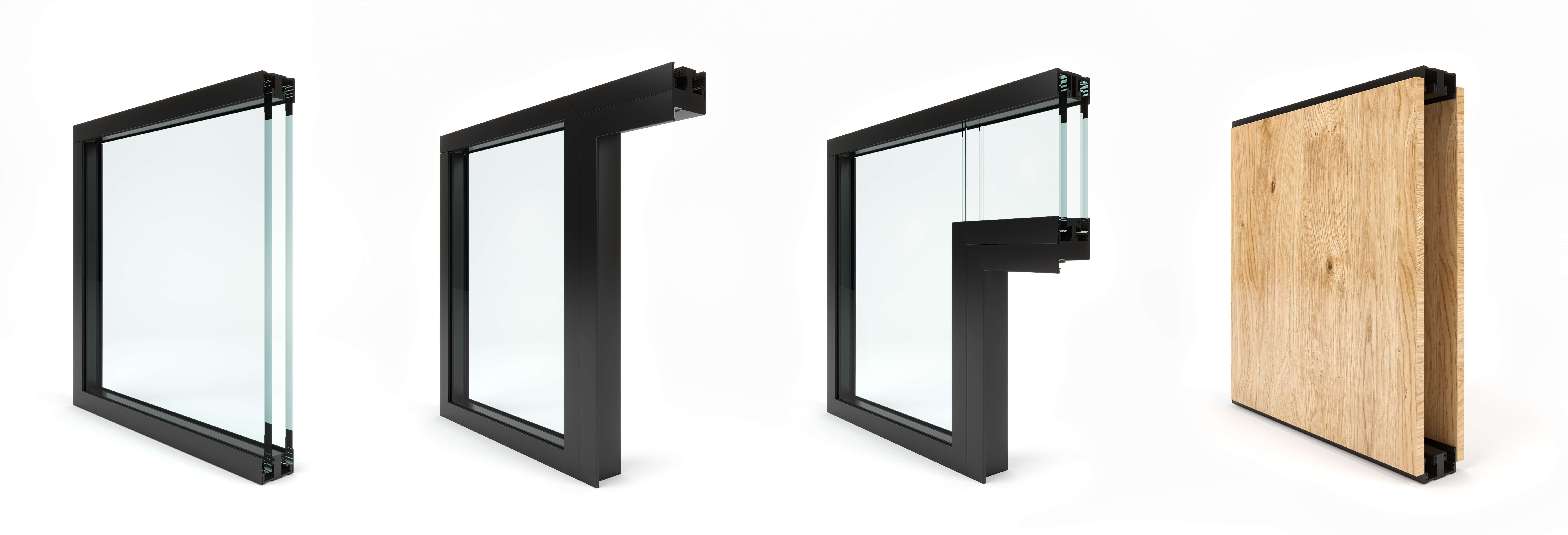

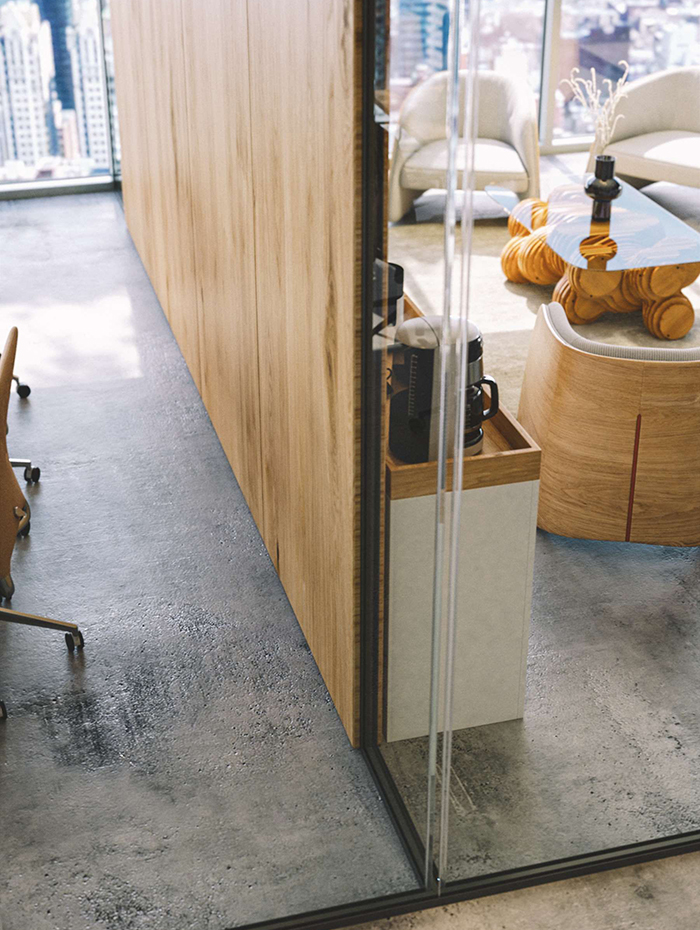

Vista NEO double glazed system three-way joint allows an uninterrupted glazing installation for enhanced aesthetics.

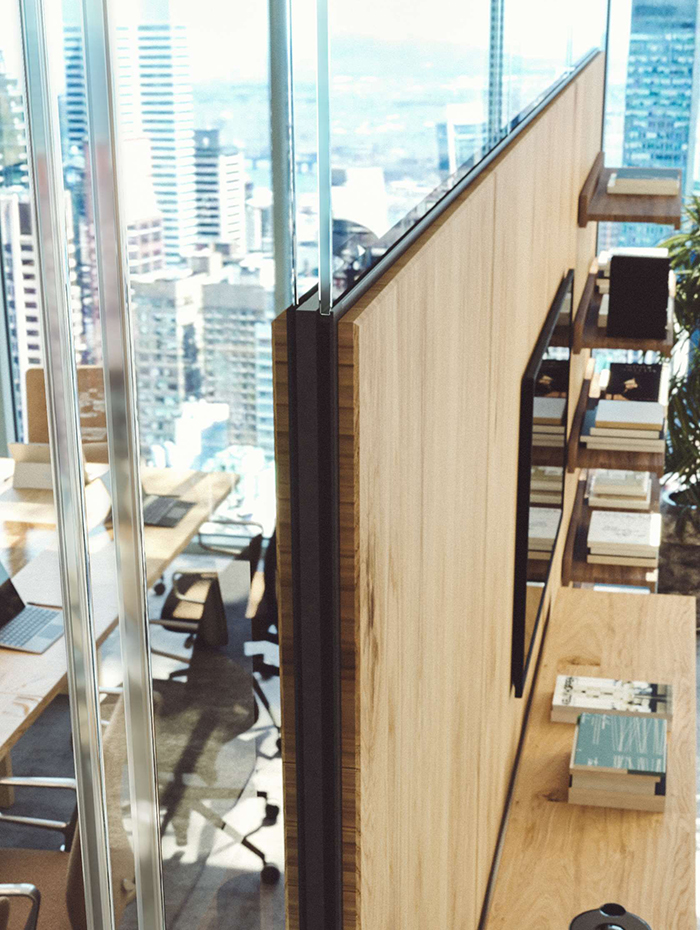

Vista NEO Clerestory glazing integrated with solid cross-wall options and glazed fins fully utilize all available natural light.

Vista NEO double glazed switch post allows for the installation and utilization of access / booking systems, light switches and electric sockets.

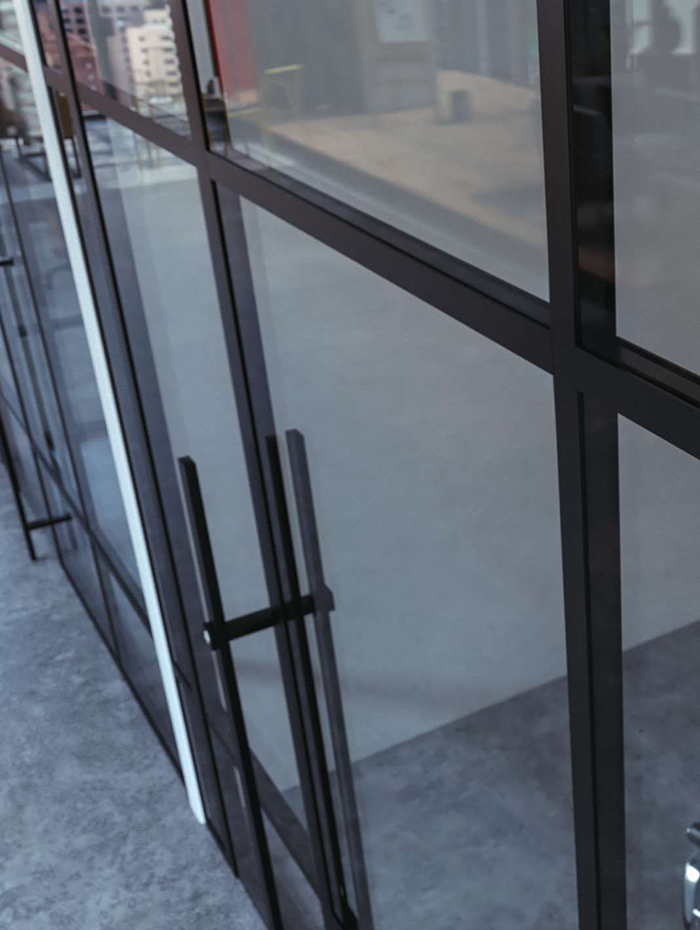

Vista NEO banded profiles integrated into the partitions and doors for a contemporary industrial design.

Specifications

Material

  • Aluminium Grade 6063 T6 confirming to BS 1474:1987

Profile size

  • Partition - 54x28mm
  • Door Frame - 54x57mm

Profile finish

  • Powder coated
  • Anodized

Glass type

  • CFT
  • Low Iron
  • Tinted

Glass thickness

  • 2x12mm
  • 1x12 + 1x12.8 or 13.52mm Laminated
  • 2x12.8 or 13.52mm laminated

Glass joints

  • 180⁰ / 90⁰ / 135⁰ / 3 way polycarbonate
  • joints for 12mm glass
  • Joint tape for laminated glass

Acoustic performance

  • 12+12mm achieving 37 RwdB
  • 12+12.8mm achieving 42 RwdB
  • 12.8+12.8mm achieving 43 RwdB

Maximum height for installation

  • 3000mm from finished floor to finished ceiling level

Solid panels

  • 1200x2400x12mm laminated boards *
  • 2070x2800x18mm laminated boards *

* Other sizes and finishes are available upon request
